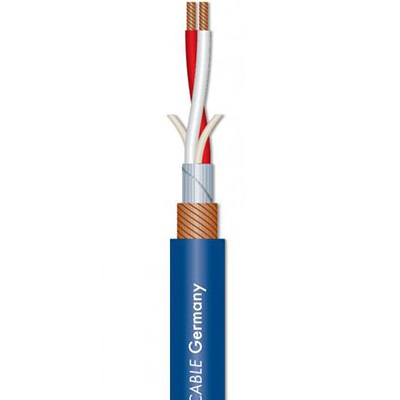

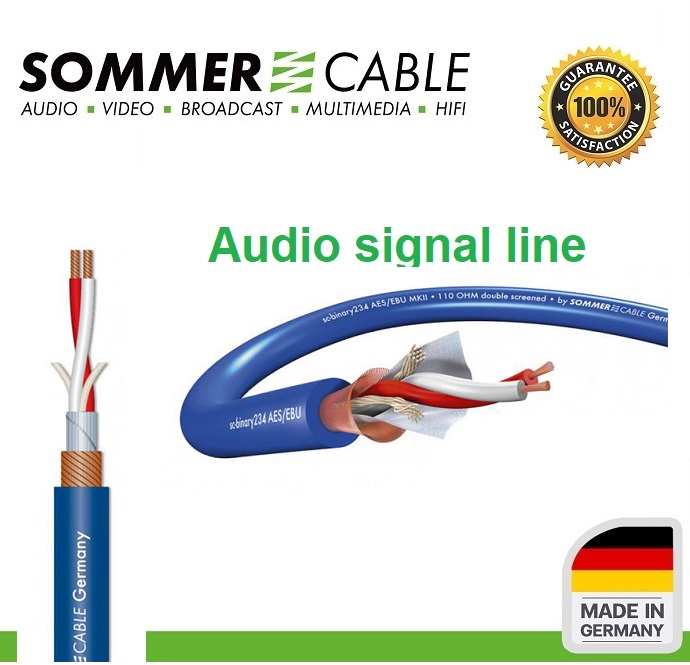

Thông số chi tiết sản phẩm dây tín hiệu Sommer BINARY 234 MKII
| Name | Binary 234 AES/EBU MKII |
|---|---|
| Properties | Digital 110 Ω AES / EBU |
| Properties | OFC oxygen free copper |
| Properties | Analog |
| Application area | Stage / live |
| Application area | Installation |
| Application area | Studio / Broadcast |
| Application area | Mobile outdoor / indoor |
| Application area | ELA 100 V |
| Application | DMX |
| Colour | blue |
| Colour detailed | blue |
| Signal transmission | symmetrical |
| Construction | (2LI2Y0,34mm²)(ST)DY |
| Jacket material | PVC |
| Jacket Ø [mm] | 6,20 |
| Number of Channels (AES/EBU, DMX) | 1 |
| Inner conductor (AES/EBU, DMX) | 2 |
| Inner conductor (AES/EBU, DMX) [mm²] | 0,34 |
| Inner conductor Ø (AES/EBU, DMX) [mm] | 0,66 |
| AWG (AES/EBU, DMX) | 22 |
| Shielding | Copper spiral shielding + aluminum steamed fleece |
| Copper strands (AES/EBU, DMX) | 19 |
| Copper strand Ø (AES/EBU, DMX) [mm] | 0,15 |
| Conductor insulation material | Foam / Skin-PE |
| Conductor insulation Ø [mm] | 1,50 |
| Weight per 1 m [g] | 50 |
| Fire load per m [kWh] | 0,17 |
| Style variant | round |
| Shielding factor [%] | 100 |
| Packing | 100 m spool |
| Temperature min. [°C] | -25 |
| Temperature max. [°C] | 70 |
| Width [mm] | 6,2 |
| Height [mm] | 6,2 |
| Capac. cond./cond. per 1 m (AES/EBU, DMX) [pF] | 63 |
| Capacity wire/wire at 1 ft. (AES/EBU, DMX) [pF] | 19,2024 |
| Capac. cond./shield. per 1 m (AES/EBU, DMX) [pF] | 115 |
| Capacity wire/electic screen at 1 ft. (AES/EBU, DMX) [pF] | 35,052 |
| Impedance [Ω] | 110 |
| Insulation resist. per 1 km [GΩ] | 1 |
| Insulation resist. per 1000 feet [GΩ] | 0,3048 |
| Insulation resist. per 1 km (AES/EBU, DMX) [GΩ] | 1 |
| Insulation resist. per 1000 feet (AES/EBU, DMX) [GΩ] | 0,3048 |
| Conductor resistance per 1 km [Ω] | 53 |
| Conductor resistance per 1000 ft. [Ω] | 16,1544 |
| Shield. resistance per 1 km [Ω] | 28 |
| Shield. resistance per 1000 ft. [Ω] | 8,5344 |
| EAN | 4049371002363 |
